Aluminum (Al) toxicity
SYMPTOMS
- Sunflower is very sensitive to high aluminum.
- Al toxicity may manifest itself first as patches of stunted/dead plants in a field.
- Emergence is poor and plants are stunted.
- Affected roots are short, thickened and distorted.
- Poor root growth decreases uptake of essential plant nutrients resulting in various deficiency symptoms, especially phosphorus (e.g., death of lower leaves).
FIGURE 1 - Soil with high soluble Al decreases root proliferation.

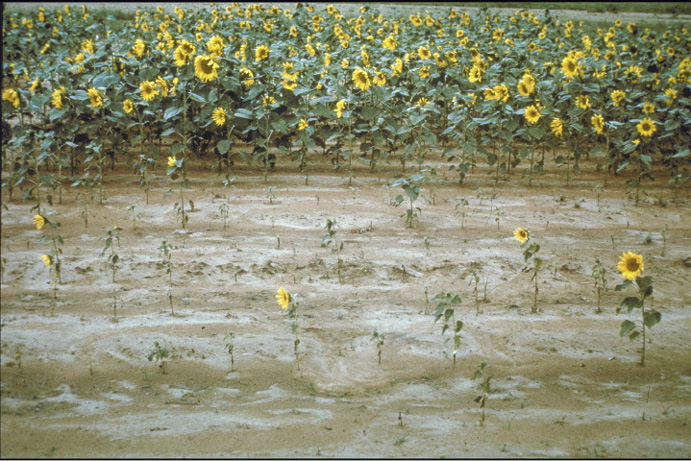

FIGURE 2 - Low pH soil (foreground) with high Al. Decreased root growth results in stunted and dead plants. Dead lower leaves of remaining plants indicate P deficiency.
FACTORS FAVORING DEVELOPMENT
- Toxicity occurs on acid (< pH 5.0), highly weathered soils, and soils acidified by long-term nitrogen (N) fertilizer use.
- Toxicity occurs in both temperate and tropical regions.
IMPORTANT FACTS
- Sunflower is more sensitive to Al than many other crops.
Boron (B) deficiency
SYMPTOMS
- B-deficient plants are initially darker green and stunted.
- Leaves progressively become smaller, and upper leaves become puckered and deformed.
- Grey-brown streaks may develop on upper stems and capitula.
- Buds may abort, or heads will display hypertrophy (petals forming in center of head), resulting in poor and uneven seed set.
- Stems may snap off just below head.
FIGURE 1 - Leaf puckering/distortion evident on young plants
FIGURE 2 - Discoloration of stem below a head
FIGURE 3 - B-deficient plants have petals in center of heads
FACTORS FAVORING DEVELOPMENT
- Boron deficiency is most likely on leached acid soils.
- Dry conditions favor the appearance of symptoms, which may disappear after rain.
IMPORTANT FACTS
- B deficiency is a common micronutrient deficiency.
- Symptomatic sunflower plants are indicators of boron deficient soils.
- Borax is a useful treatment for B-deficient potted sunflower plants.
- B fertilization where B is not needed can reduce yield.
- Can be confused with Tobacco Streak Virus.
Boron (B) toxicity
SYMPTOMS
- Excess boron causes chlorosis and necrosis of marginal and interveinal areas of older leaves.
FIGURE 1 - High B supply in the root environment initially results in distinct marginal chlorosis and necrosis (left) that spread with increasing severity to the interveinal areas (right).
FIGURE 2 - Spraying with a solution of B can result in a distinct pale brown necrosis.
FACTORS FAVORING DEVELOPMENT
- Sunflower is relatively tolerant of high B in the root environment but may suffer from B toxicity in situations where excess B fertilizer has been applied.
- Attempts to overcome B deficiency with a B foliar spray may result in leaf burning.
IMPORTANT FACTS
- Sunflower is unlikely to suffer from B toxicity.
- There is a fine line between meeting B requirements and B toxicity in sunflower.
- B is not mobile in plants, so tissue analysis should come from upper leaves.
- Because B is mobile in the soil, plants can recover from B toxicity with rainfall or irrigation.
FIGURE 1 - High B supply in the root environment initially results in distinct marginal chlorosis and necrosis (left) that spread with increasing severity to the interveinal areas (right).
FIGURE 2 - Spraying with a solution of B can result in a distinct pale brown necrosis.
Calcium (Ca) deficiency
SYMPTOMS
- Symptoms appear on both younger and older leaves.
- Ca deficiency slows expansion of young leaves which appear crinkled or wilted.
- Darkened areas of petioles and major veins on underside of older leaves.
FIGURE 1 - A deficiency of Ca limits the expansion of young leaves that appear crinkled.

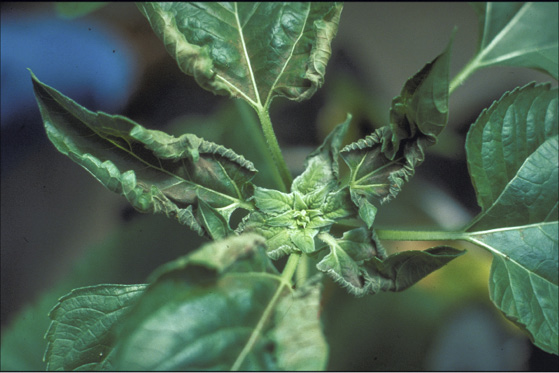

FIGURE 2 - Young leaves are small and wilted with upward cupping and bronzing.
FIGURE 3 - Low Ca in older leaves results in darkened areas of petioles and major veins.
FACTORS FAVORING -DEVELOPMENT
- Ca deficiency limits plant growth in acid soils, especially those that are sandy and highly leached.
IMPORTANT FACTS
- Acid soils are often low in Ca, plus magnesium (Mg) and potassium (K), resulting in poor plant growth.
- Addition of magnesium (Mg) or potassium (K) may induce Ca deficiency.
Copper (Cu) deficiency
SYMPTOMS
- Cu deficiency causes a reduction in stem elongation.
- Fully expanded, older leaves remain dark green and shiny and become cupped.
- Emerging young leaves are severely crinkled, thickened and are grey-green.
- The roots of potted plants become excessively branched.

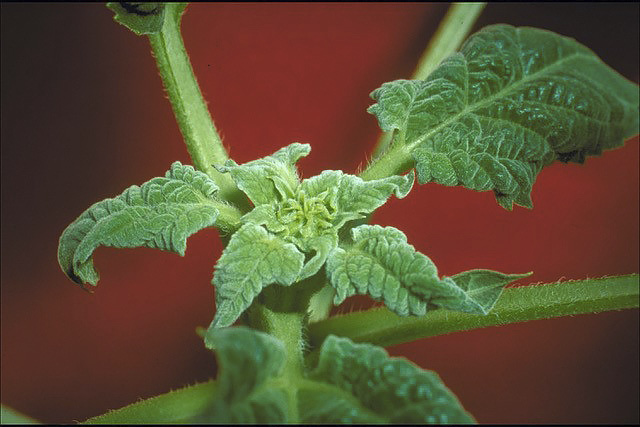

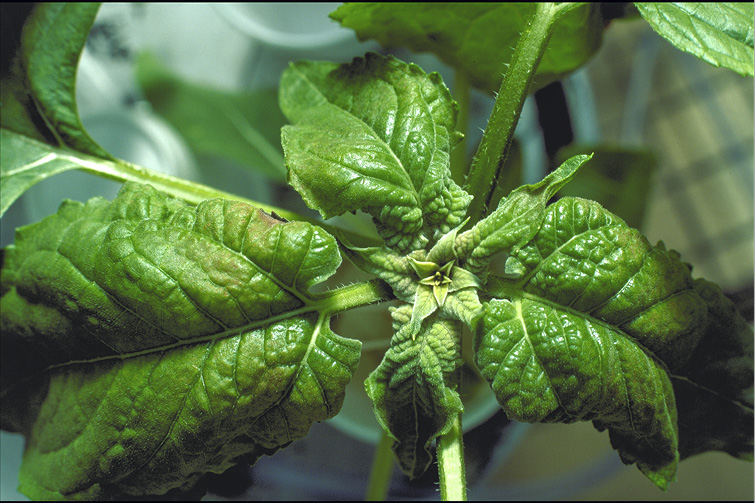

FIGURE 1 - Severe crinkling and thickening of newly-emerged leaves
FACTORS FAVOURING DEVELOPMENT
- Cu is immobile in soil and can become unavailable for plant uptake in dry soils.
- Heavy applications of lime or nitrogen (N) can induce Cu deficiency.
- Coarse-textured, low organic matter soils can produce Cu deficiency.
IMPORTANT FACTS
- Cu deficiency is very rare in sunflowers.
- Consider Cu deficiency as being possible if it shows up in more sensitive crops, such as wheat.
Iron (Fe) deficiency
SYMPTOMS
- Symptoms seldom occur in the field, but may be seen in plants grown in liquid solution culture.
- Initial symptoms appear in young leaves as a pale yellow, interveinal chlorosis.
- Severe Fe deficiency results in leaf distortion and leaf necrosis.

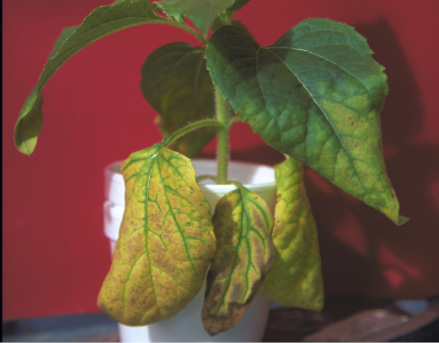

FIGURE 2 - Young leaves of older plants show a pale interveinal chlorosis.
FACTORS FAVORING DEVELOPMENT
- Sunflower has the ability to decrease soil pH, i.e., increase acidity, thereby increasing the solubility of Fe oxides to improve plant availability.
- Some hybrids/breeding lines are more prone to Fe deficiency than others.
IMPORTANT FACTS
- Fe deficiency is unlikely in field-grown plants
- FeEDDHA or FeHBED are the preferred iron fertilizers for soil application in the field.
- The addition of Fe chelates can correct Fe deficiency in potted plants.
Magnesium (Mg) deficiency
SYMPTOMS
- Initial symptoms include a mild mottled chlorosis, followed by bronzing and downward cupping of older leaves.
- Symptoms are more severe on older than younger leaves.
- As Mg deficiency increases, older leaves often develop marked interveinal chlorosis and necrotic margins.
FIGURE 1 - Severity of Mg deficiency (interveinal chlorosis and necrotic margins) is most severe on older/lower leaves.
FIGURE 2 - A pale mottled chlorosis is visible between the major veins during the early stages of Mg deficiency.

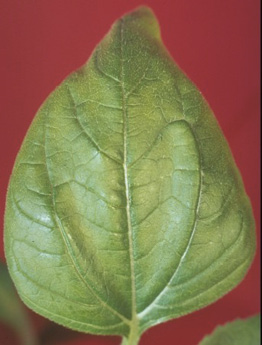

FIGURE 3 - Bronzing and cupping of older leaves is a symptom of severe Mg deficiency.
FACTORS FAVORING DEVELOPMENT
- Mg deficiency is most likely on acid infertile soils and soils overfertilized with calcium (Ca) or phosphorus (P).
IMPORTANT FACTS
- Mg deficiency is prevented by use of Mg fertilizers or liming with dolomitic limestone.
Manganese (Mn) deficiency
SYMPTOMS
- Mn-deficient plants usually have thin, spindly stems.
- Initially, younger leaves of plants with Mn deficiency have small chlorotic spots that do not coalesce (merge).
- With increasing severity, the small chlorotic spots turn into pale brown necrotic spots surrounded by a yellow ring/halo.
- Young and recently matured leaves also develop an upward curling of the leaf margins.
FIGURE 1 - Small chlorotic spots develop on younger leaves of plants with Mn deficiency and become necrotic surrounded by chlorotic areas.
FACTORS FAVORING DEVELOPMENT
- High pH decreases plant-available Mn in soils.
IMPORTANT FACTS
- A deficiency of Mn is likely in alkaline soils, even though there may be high Mn levels in the soil.
- Iron fertilizers like FeEDDHA can reduce Mn uptake when Mn supply is marginal.
Manganese (Mn) toxicity
SYMPTOMS
- Excess Mn uptake causes stunting along with marginal chlorosis and distortion of older and younger leaves.
- Severe Mn toxicity results in marked leaf crinkling and mottled chlorosis and pale brown necrosis.
- Minute dark spots develop initially on lower leaves, petioles and stems.

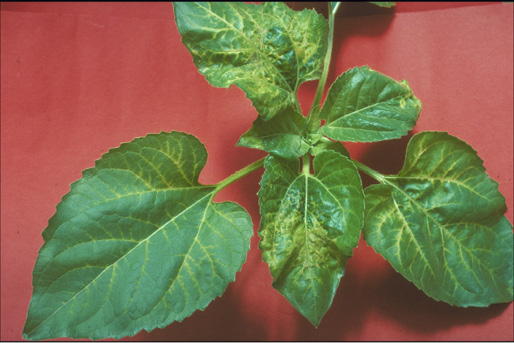

FIGURE 1 - Chlorosis around the major veins and leaf distortion are symptoms of Mn toxicity.
FIGURE 2 - Small dark spots associated with trichomes (plant hairs) are a sign of Mn accumulation.

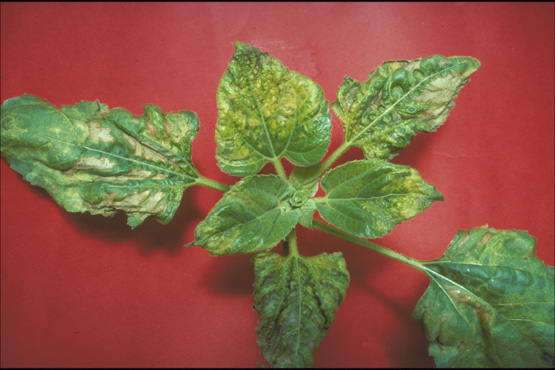

FIGURE 3 - Severe Mn toxicity.

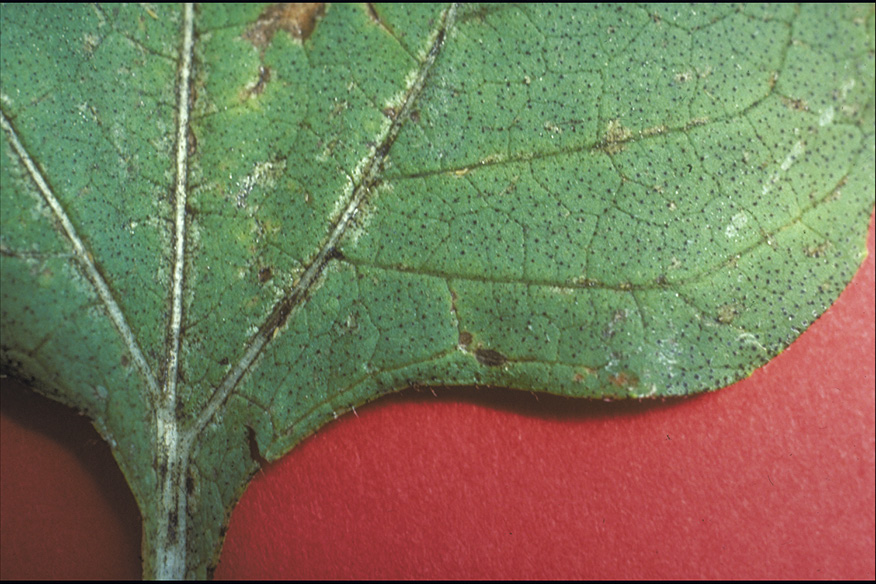

FIGURE 4 - Small dark spots on lower leaves, stem and petioles are a sign of high Mn accumulation.
FACTORS FAVORING DEVELOPMENT
- Although many soils contain large amounts of oxidized Mn, it is not directly available to plants.
- However, if soils become acidic or waterlogged, Mn oxides are converted to high concentrations of plant-available Mn that may be toxic.
IMPORTANT FACTS
- Sunflower is moderately tolerant of high Mn in the root environment.
- The small dark spots in sunflower may be used as an indicator of high Mn availability in soil.
Molybdenum (Mo) deficiency
SYMPTOMS
- Symptoms occur in young seedlings, often within a few days of emergence.
- Seedlings have upward cupped leaves that are chlorotic, especially between the major veins.
- In severe instances, leaf margins turn necrotic.
- Mo is easily translocated and symptoms are seen on the entire plant.
FIGURE 1 - Mo-deficient young plant with leaves that cup upwards and have severe interveinal chlorosis
FIGURE 2 - Poor growth and chlorosis in Mo-deficient seedlings (left) compared to those with sufficient Mo (right)
FACTORS FAVORING DEVELOPMENT
- Acid soils may have low plant-available Mo, resulting in seedlings with Mo deficiency.
IMPORTANT FACTS
- Seeds produced from plants low in Mo may have insufficient Mo to produce healthy seedlings when grown on acid soils.
- Seedlings deficient in Mo may recover through increased root proliferation that enhances Mo absorption.
- Mo is associated with nitrogen (N) metabolism in the plant, so Mo-deficient plants exhibit symptoms of N deficiency.
Nitrogen (N) deficiency
SYMPTOMS
- N deficiency may occur in plants of all ages.
- A general chlorosis of leaves is the most characteristic symptom of N deficiency.
- Older leaves often become increasingly yellow and develop a marginal pale-yellow to light-brown necrosis.
- N deficiency may result in young seedlings with thin, elongated stems and small, pale leaves.

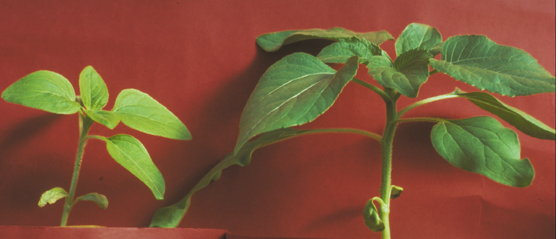

FIGURE 1 - N deficient (left) and healthy (right) sunflower seedlings.

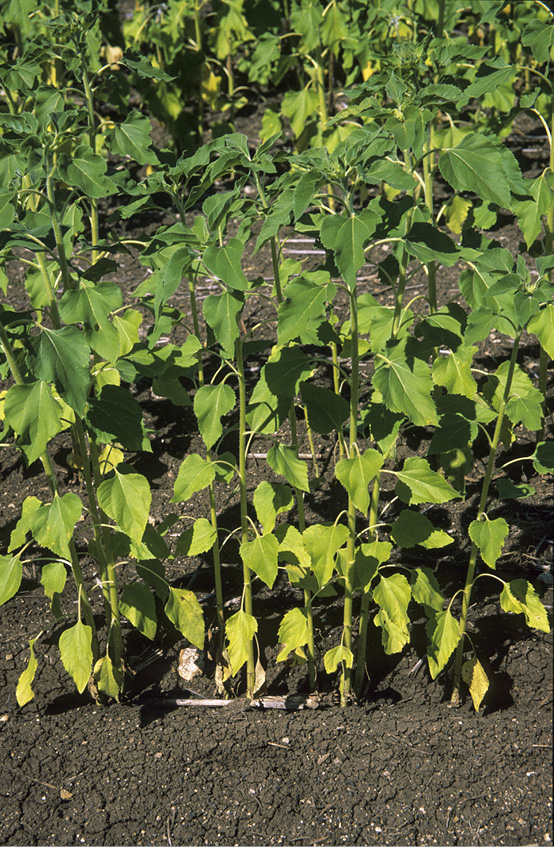

FIGURE 2 - Chlorosis and marginal necrosis are most severe on the older/lower leaves.
FACTORS FAVORING DEVELOPMENT
- N deficiency is a common limitation to plant growth in most field crops.
- Low N supply is often the most limiting factor for plant growth.
- Prolonged waterlogging, or leaching, can induce N deficiency.
IMPORTANT FACTS
- Early N deficiency results in low seed set and yield, even if adequate N fertilizer is applied after symptoms appear.
Phosphorus (P) deficiency
SYMPTOMS
- Localized and dark gray necrosis of older leaves is the most characteristic symptom.
- Older leaves die as P deficiency increases in severity.
- P-deficient plants are stunted and heads are smaller.

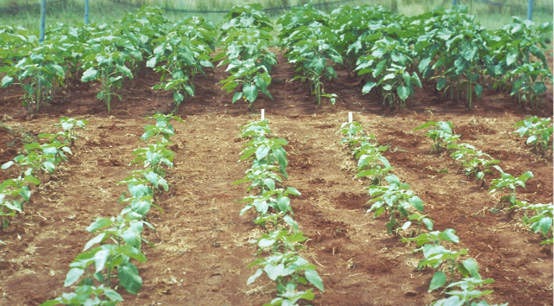

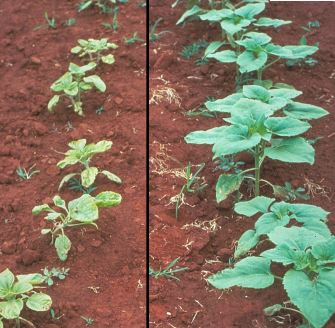

FIGURE 1 - P deficiency (foreground) compared to applied P fertilizer (background) may result initially in poor growth with no other visible symptoms.
FIGURE 2 - Increased P demand as the plants mature results in necrosis on older leaves.

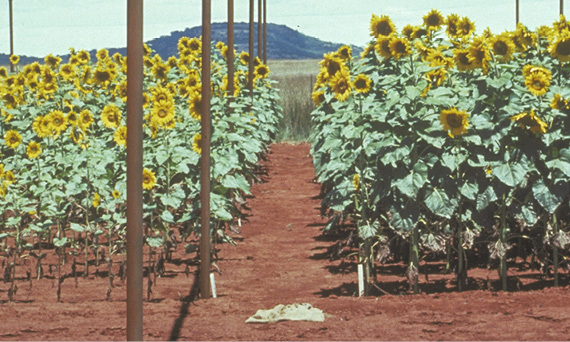

FIGURE 3 - Stunted, P-deficient plants (left) and healthy plants (right).
FACTORS FAVORING DEVELOPMENT
- P deficiency is a common limitation to plant growth in most field crops.
IMPORTANT FACTS
- Aluminum (Al) toxicity in acid soils decreases root growth that may result in visible P deficiency symptoms.
- Necrotic lesions on leaves can look like Alternaria leaf spot and Septoria leaf spot.
Phosphorus (P) toxicity
SYMPTOMS
- Older leaves develop a pale brown necrosis in the interveinal areas of older leaves when there is excess P in solution.
FIGURE 1 - High P in solution results in distinct necrosis (but no chlorosis) between the major veins while the remainder of the leaf remains healthy
FACTORS FAVORING DEVELOPMENT
- Sunflower is relatively tolerant of high P in the root environment but may suffer from boron (B) toxicity in situations where excess P fertilizer has been applied.
IMPORTANT FACTS
- Sunflower plants are only likely to show symptoms of P toxicity when grown in pots and/or under glasshouse conditions when excess P fertilizer has been added.
Potassium (K) deficiency
SYMPTOMS
- Early symptoms appear as interveinal chlorosis on edges of older leaves.
- Results in chlorosis spreading between major veins towards the midrib.
- Pale brown necrosis follows marginal chlorosis.
- Younger leaves remain healthy even with severe K deficiency.
- Affected plants are stunted.

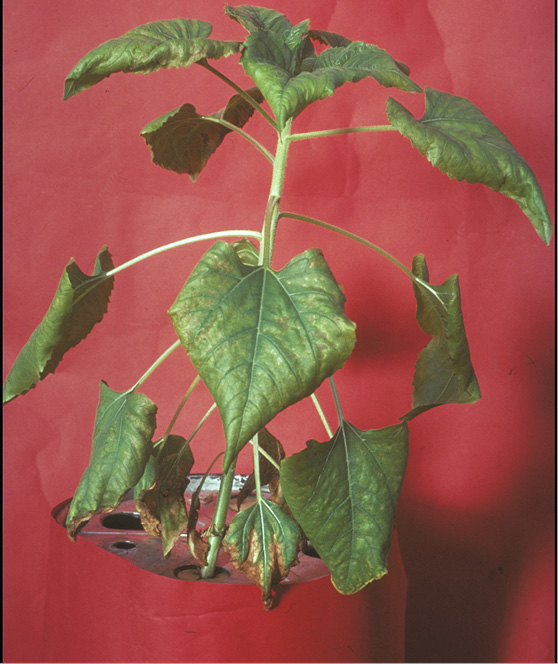

FIGURE 1 - Inadequate K supply greatly decreases plant growth with marginal chlorosis evident on older leaves (left) compared to a healthy plant (right).

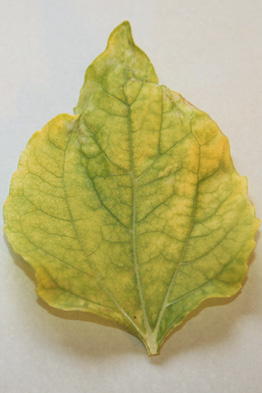

FIGURE 2 - Interveinal chlorosis and marginal necrosis of older leaves.

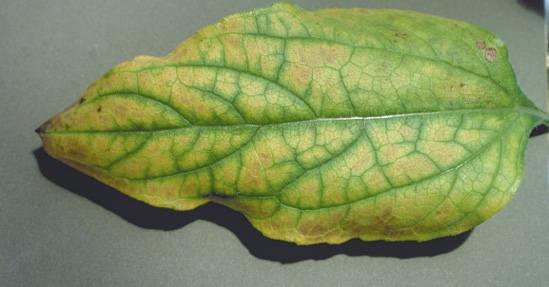

FIGURE 3 - Severe interveinal chlorosis.
FACTORS FAVORING DEVELOPMENT
- K deficiency is a common limitation to plants grown on infertile soils.
- K is readily leached from sandy soils in regions of high rainfall.
IMPORTANT FACTS
- Plants require a high supply of K for healthy growth.
Salinity – Sodium Chloride (NaCl)
SYMPTOMS
- Initial symptoms of high NaCl include poor growth and upward cupping of leaves.
- In older seedlings, high salinity in the root environment results in marginal necrosis especially on older leaves.

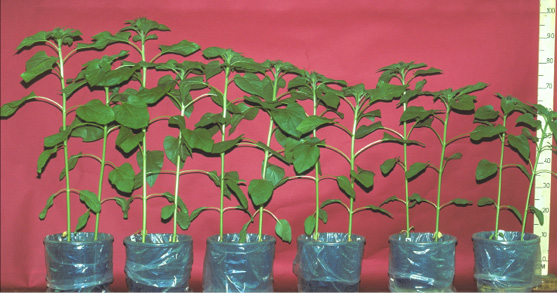

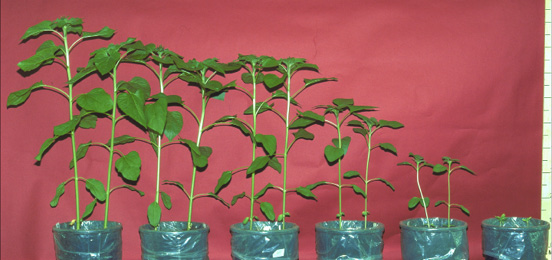

FIGURE 1 - Response of sunflower seedlings (left to right) to increasing application of NaCl (0, 1, 2, 4, 8 and 16 t/ha) to a Vertosol soil.

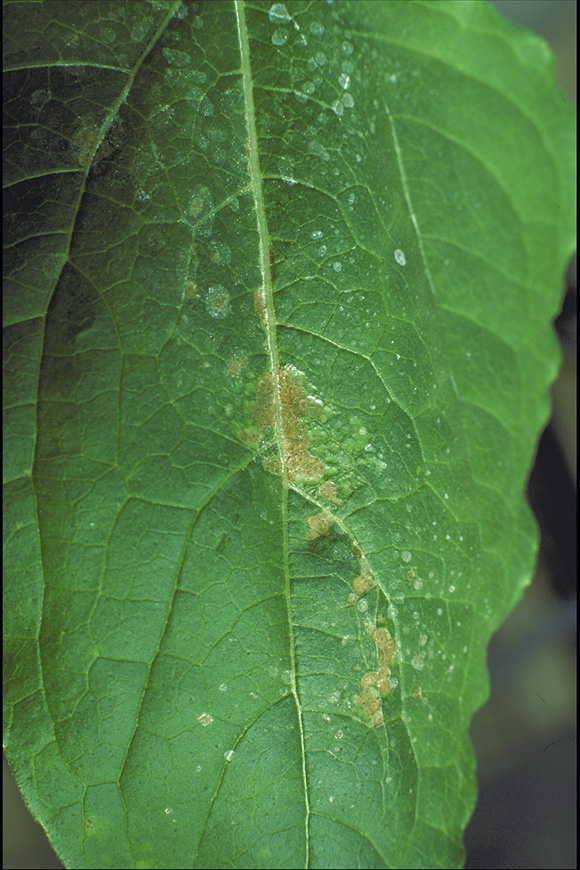

FIGURE 2 - High NaCl in the root environment results in a light brown marginal necrosis and mild interveinal chlorosis especially on older leaves.
FACTORS FAVORING DEVELOPMENT
- Adverse effects of high salinity are likely to occur in regions of low rainfall and in alkaline soils of high pH.
IMPORTANT FACTS
- The numerous individual factors that cause detrimental salinity effects include high sodium (Na), magnesium (Mg), calcium (Ca) and chloride (Cl).
- Sunflower is more tolerant of high saline soils than most other field crops.
- Sodicity is caused by high levels of Na, which can cause the degradation of soil structure.
Salinity – High Sodium Sulfate (Na2SO4)
SYMPTOMS
- In older seedlings, high Na2SO4 in the root environment results in chlorosis and a pale brown necrosis of interveinal areas especially on older leaves.
FIGURE 1 - Response of sunflower seedlings (left to right) to increasing application of Na2SO4 (0, 1, 2, 4, 8 and 16 t/ha) to a Vertosol soil.
FIGURE 2 - High Na2SO4 in the root environment results in leaf distortion along with interveinal chlorosis and a light brown necrosis especially on older leaves.
FACTORS FAVORING DEVELOPMENT
- Adverse effects of high salinity are likely to occur in regions of low rainfall and in alkaline soils of high pH.
IMPORTANT FACTS
- The numerous individual factors that cause detrimental salinity effects include high sodium (Na), magnesium (Mg), calcium (Ca) and chloride (Cl).
- Sunflower is more tolerant of high saline soils than most other field crops.
- Sodicity is caused by high levels of Na which can cause the degradation of soil structure.
Sulfur (S) deficiency
SYMPTOMS
- S deficiency occurs in plants of all ages.
- In seedlings, the main symptom is an interveinal chlorosis of young leaves with no leaf distortion.
- In older plants, S deficiency causes stunting and spindly growth, and leaves are chlorotic with necrotic leaf margins.

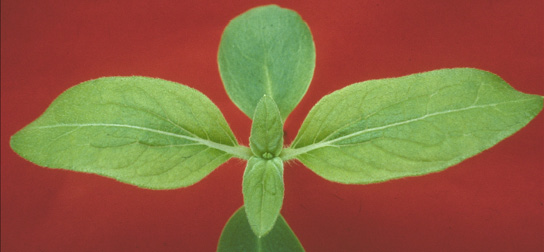

FIGURE 1 - A pale general chlorosis of the first true leaves is visible during the early stages of S deficiency in a young seedling.
FIGURE 2 - S deficiency (bottom) results in a stunted, chlorotic plant compared to a plant with adequate S (top).
FACTORS FAVORING DEVELOPMENT
- S deficiency occurs in soils with low organic matter and sulfur-leached soils.
IMPORTANT FACTS
- S deficiency is difficult to diagnose because the mild chlorosis which occurs across the field may be caused by other abiotic factors.
- If uncertain, a plant tissue analysis can differentiate between nitrogen (N) and S deficiency.
Zinc (Zn) deficiency
SYMPTOMS
- Initial symptoms are small, thin leaves that otherwise appear healthy at the growing point.
- Chlorosis of youngest leaves may occur as Zn deficiency intensifies, followed by sudden wilting and bronzing.
FIGURE 1 - Zn deficiency initially results in small thin leaves at the growing point.
FIGURE 2 - Sudden wilting and bronzing of younger leaves occurs with increasingly severe Zn deficiency.
FACTORS FAVORING DEVELOPMENT
- High pH decreases plant available Zn in soils.
IMPORTANT FACTS
- A deficiency of Zn is likely in alkaline soils even though they may be high in total Zn.
- High applications of lime to acid soils may induce Zn deficiency.
